Helical / Screw Pile Installation
in Sudbury & North Bay, Ontario
Engineered structural support for decks, additions, foundations, and new construction — installed with precision using a Kubota mini excavator with hydraulic drive system.
— WHAT THEY ARE
What Are Helical Screw Piles?

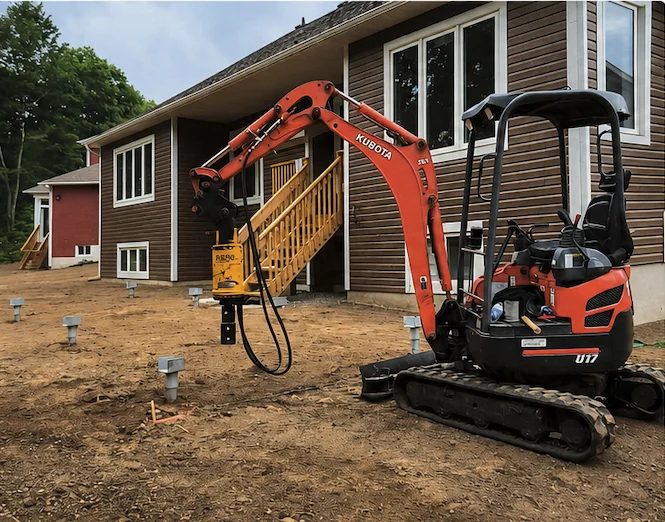

Helical screw piles (also called helical piles or screw piers) are steel foundation elements driven into the ground using a hydraulic torque motor mounted on a Kubota mini excavator.
They provide immediate load-bearing capacity without large-scale excavation, concrete curing time, or major soil disturbance — ideal for Northern Ontario's freeze-thaw cycles.
Every pile is torque-verified on installation — load capacity is measured, not guessed. Foundation Masters supplies and installs Mascore M-series helical piles, from light residential to heavy commercial.
— APPLICATIONS

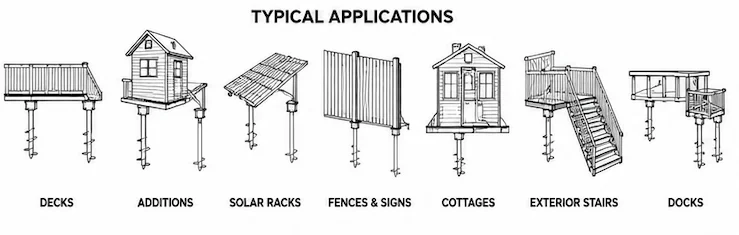

Typical Applications
Screw piles are versatile — from backyard decks to commercial foundations. Here's where we install them most often.

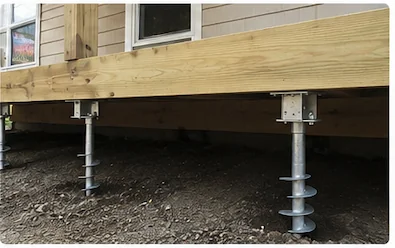

Decks
Additions
Solar Racks
Fences & Signs
Cottages
Exterior Stairs
Docks
Underpinning
— WHAT YOU GET
Pricing & Scope
Included in Base Price
- ✓ Supply and installation of specified M2 screw piles
- ✓ Standard pile caps or saddles
- ✓ Mini excavator-mounted hydraulic drive installation
- ✓ Standard installation under normal soil conditions
- ✓ Torque verification on every pile
Not Included (Customer Responsibility)
- × Engineering & stamped drawings
- × Permits & municipal approvals
- × Utility locates (required before work)
- × Excavation & concrete removal
- × Landscaping restoration
- × Deck or framing modifications
— PILE SPECIFICATIONS
Mascore M-Series Helical Piles
We install Mascore M-series piles — rated for everything from light residential to heavy commercial loads. Pricing shown is a guide; final quote depends on pile count, depth, access, and mobilization.
* Prices subject to change. Contact us for current quote.
| Pile Type | Capacity | Shaft Dia. | Helix | Lead Length | Best For |
|---|---|---|---|---|---|
| M1 | 8,000 lbs | 2.375" | 8" | 5' | Light residential, small decks |
| M2 | 15,000 lbs | 3.000" | 10" | 6'–10' | Standard residential decks & additions |
| M3 | 25,000 lbs | 3.500" | 12"–14" | 10' | Heavy residential & commercial |
| M4 | 25,000 lbs | 4.500" | 16" | 10' | Heavy commercial projects |
Extensions
Quoted per project
3' and 5' options available — depth determined on-site
Difficult Access
$105.00 / man hour
Tight access, steep grades, buried debris, or hand digging
Mobilization
Quoted per project
Equipment transport, setup, fuel, and travel
Rock / Refusal
Additional charge
Bedrock, buried concrete, or large rocks encountered
Engineering Pricing Guide
Engineering is not included in our base price but is available through licensed professional engineers. Typical ranges below — ask us for current rates.
Basic Deck
~$250
Covered Deck
~$300
Roof Structure
~$300
Addition
$450–$800
Tiny Home / Modular
$750–$1,200
House
$1,200–$2,500
Commercial / Industrial
$900–$3,500
* Prices are estimates only and subject to change after owner review.
— OUR PROCESS
How It Works
Site Assessment
Free assessment of access, soil conditions, and structural loads. We evaluate the site and recommend the right pile spec.
Itemized Quote
Transparent pricing — pile count, expected depth, mobilization, and access factors. No hidden costs.
Utility Locates
Customer arranges utility locates before installation day. We coordinate timing with your locate window.
Installation
Our Kubota mini excavator drives piles to required torque depth — most residential jobs complete in 1 day.
Torque Verification
Every pile torque-verified to meet load-bearing spec. You get documented proof of installation quality.
Caps & Documentation
Pile caps installed and torque records provided. Your contractor or builder can start framing immediately.
— FAQ
Frequently Asked Questions
How deep do screw piles go? +
Depth varies based on soil conditions, frost depth, and structural load. In Northern Ontario, piles typically reach 6–12+ feet. Extensions are added on-site until the required installation torque is achieved.
Can screw piles be installed in winter? +
Generally yes — screw piles are one of the best winter foundation options. Frozen ground conditions may require additional equipment and will be quoted separately.
Do I need a permit for screw pile installation? +
Most deck and addition projects in Ontario require a building permit, and engineered drawings may be required by your municipality. We recommend engineers but permits are the homeowner's responsibility unless otherwise agreed.
What's the difference between M2 and M3 piles? +
M2 piles (15,000 lb capacity) handle standard residential decks and additions. M3 piles (25,000 lb capacity) are used for heavier loads — large additions, houses, and commercial projects. We'll specify the right pile for your structural requirements.
Is the work guaranteed? +
Foundation Masters warrants workmanship on screw pile installation. Warranty covers the installation itself but does not cover structural movement outside the installed support area, overloading, improper framing, or acts of nature.
Torque-Verified Installations
Engineered Pile Systems
Experienced Foundation Contractors
Serving Northern Ontario
Financing Available
— LET'S BUILD IT RIGHT
Built to Last. Installed Right the First Time.
Whether you're building a deck, addition, cottage, or foundation support system, Foundation Masters delivers engineered helical screw pile installations designed for Northern Ontario conditions.
Every pile is torque-verified. Every project is professionally installed. No waiting for concrete. No unnecessary excavation.
Serving Sudbury, North Bay & Manitoulin Island
Don't let foundation delays hold up your build — get a clear screw pile quote before your project starts.
